ARBMAX D35
D35 Tracked
ARBMAX D35 Tracked Drum Chipper – A game changer in tracked-towable wood chippers.
D35 Drum 13-Inch Drum Chipper
The ARBMAX D35 delivers exceptional performance in a compact, transport-friendly package. Driven by a 75hp/55kW Diesel power unit, it handles demanding workloads with ease through a generous 350mm x 450mm feed opening and a powerful dual-drive feed system with Hardox-toothed feed wheels for unrivalled pulling and crushing power.
Built for efficiency and safety, the D35 features an auto-infeed system, an oversized folding hopper with triple safety stop bars, and dual multifunction controls for versatile operation. The three-knife drum rotor, set within a Hardox chamber, ensures consistent chip quality, long component life, and easy maintenance with a quick-change knives and biomass screen system.

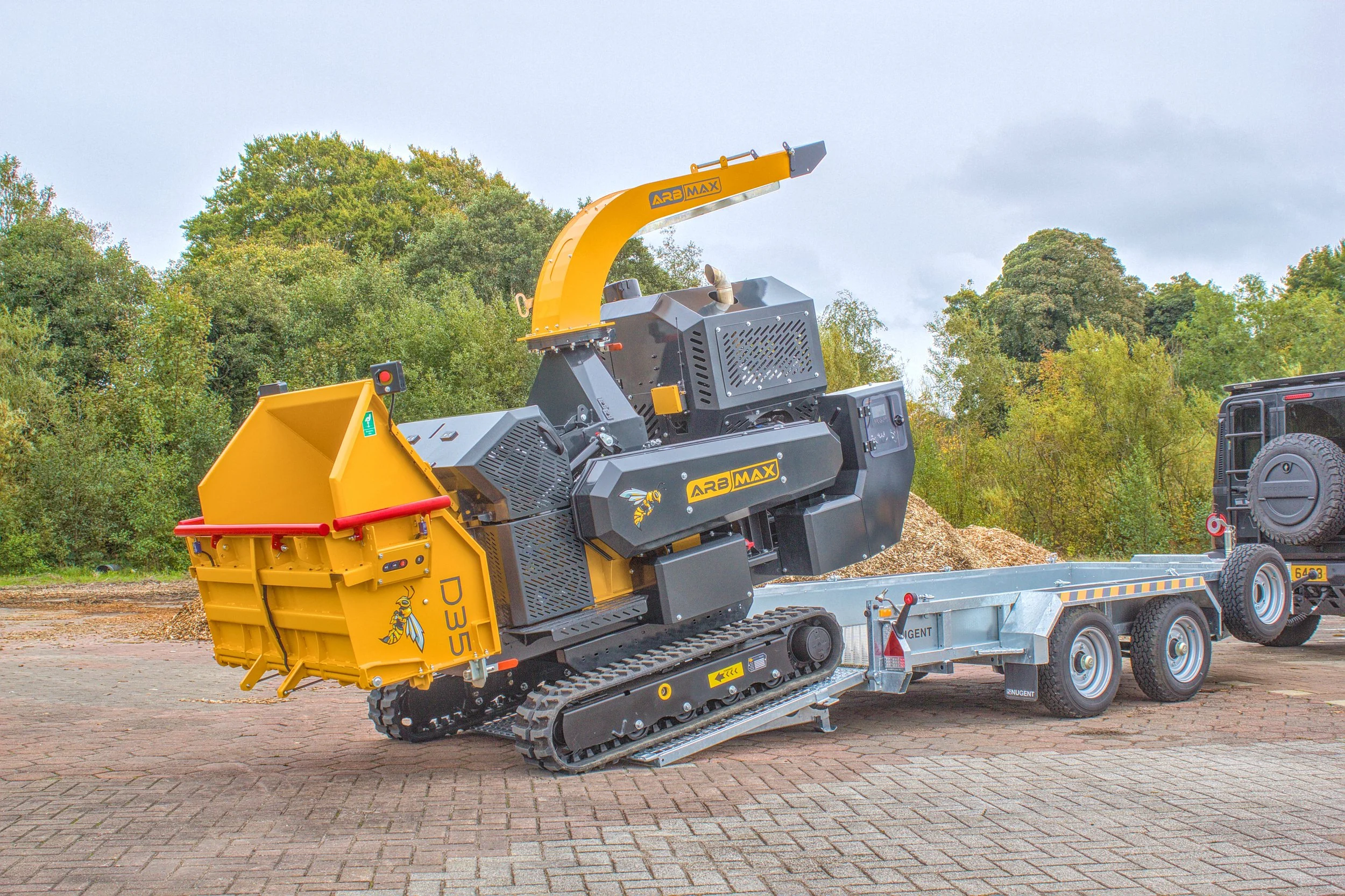

The remote-operated tracked undercarriage provides high ground clearance and stable mobility on all terrains, while its 2,700kg weight allows transport on standard plant trailers. Finished with an intuitive HD colour HMI display, two chipping modes, and a robust design built for professional use, the D35 combines power, reliability, and precision for operators who demand performance without compromise.
-
Power Unit
Deutz 2.9 Stage 5 (No AdBlue)
75hp/55kW
300Nm Torque
Fuel: Diesel (60L capacity)
Dedicated hydraulic oil cooler
Dimensions
Length — Transport 3.392m | Working 3.864m
Width — Transport 1.621m | Working 1.621m
Height — Transport 2.6m | Working 2.6m
Weight — 2700kg (Gross Trailer Weight < 3500kg)
Chipping Rotor
3 Pocket knife rotor
Quick-change blade system
Oversized bearings on the shaft
Quick change biomass screen (G50 standard)
8% Chromium knives and anvil
Hardox chamber construction
Hardox wear liner in feed chute (replaceable)
Infeed System
Feed Opening: 350mm x 450mm
Auto-infeed system
Top Feed Wheel: Aggressive Hardox teeth with twin hydraulic drive for unrivalled pulling power
Bottom Feed Wheel: Aggressive Hardox teeth
Feed Wheels: Forward and reverse functions
Hydraulic Raise & Crush: Operated via rear hopper controls or remote control
Hopper

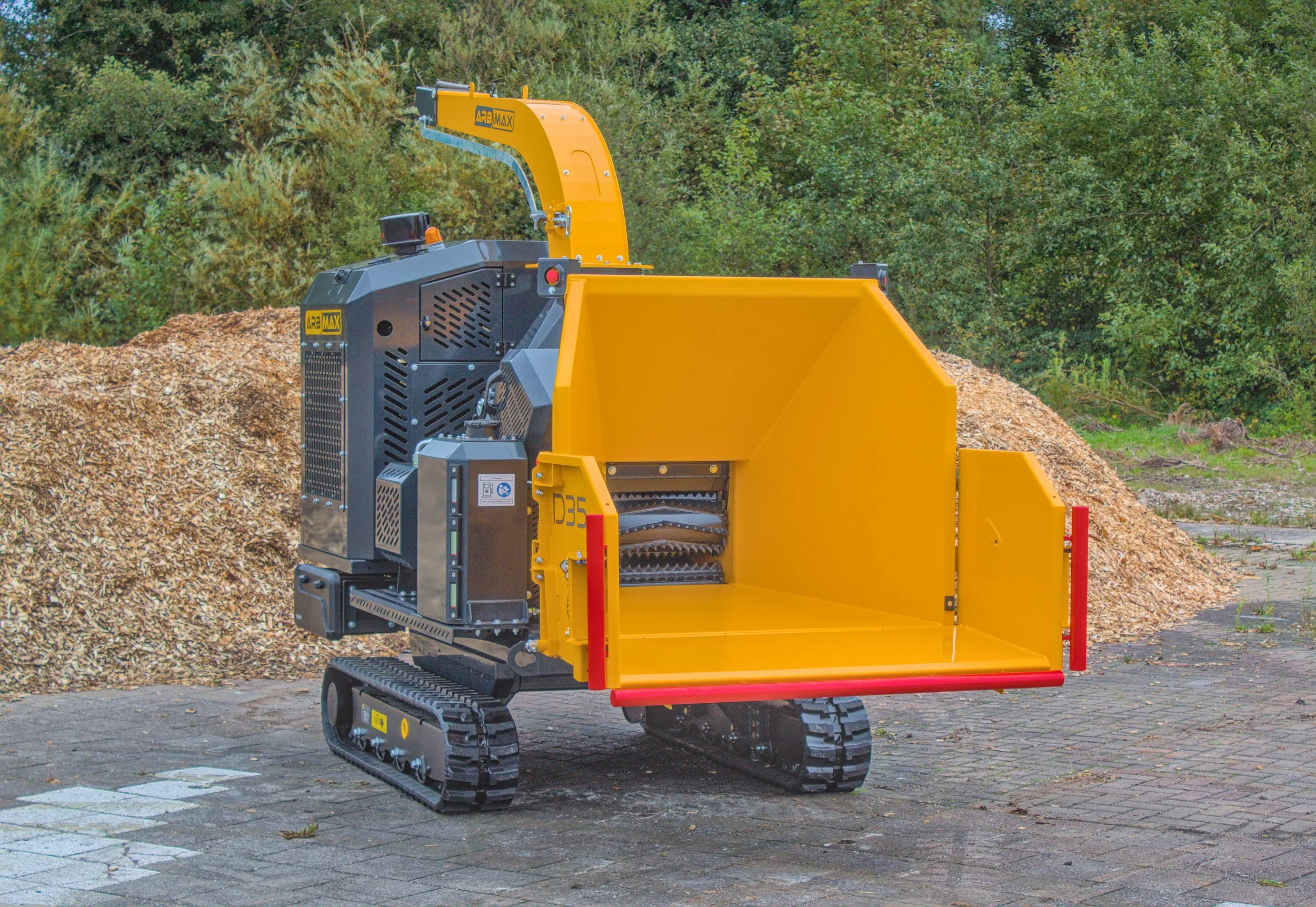

Oversized hopper for easy machine feeding
3 independent stop bars for safe hand feeding
Stop bars can be deactivated for machine feeding
Dual multifunction controls on the rear sides of the hopper
Hopper folds for transport
Manual raise/lower
2x Emergency Stop buttons at rear hopper
Discharge Chute
360-degree rotation
Adjustable discharge flap
Max Discharge Height: 2.6m
Replaceable wear liners with a wear indicator
Pricing on Application
